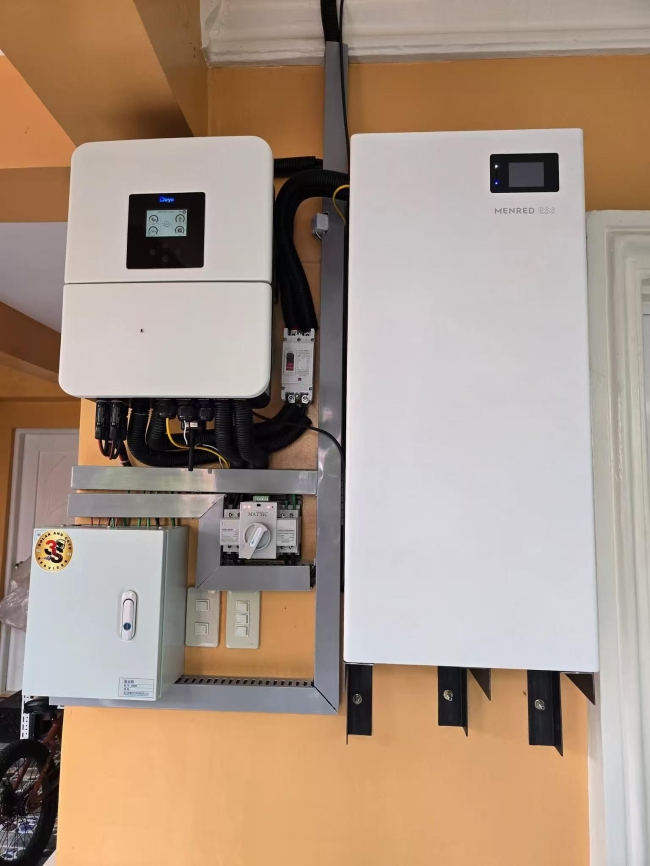

In examining a recent customer installation, we can analyze a functional solar energy system comprising a single solar energy storage battery and an integrated inverter. This setup showcases the application of our LFP.1433.F battery module.
The LFP.1433.F is a Lithium Iron Phosphate (LiFePO4) solar energy storage battery, utilizing cobalt-free cell technology. It features an energy capacity of 14.33kWh, with a usable capacity of 13.61kWh. The battery operates at a nominal voltage of 51.2Vdc, within a range of 44.8Vdc to 57.6Vdc. Its technical specifications include a maximum charge and discharge current of 140 Amps, indicating its performance capabilities. With a cycle life rated at over 6000 times, it is designed for sustained operation. The physical dimensions of this unit are 900x400x260mm, and it weighs 115kg. This model is also scalable, capable of being paralleled with up to 16 units to achieve a total capacity of 229.28kWh.
The system in the customer case study is integrated with a 6kW Deye SUN-6K-SG04LP1-EU-SM1 inverter. The inverter’s role is to manage the energy flow, converting the DC power stored in the LFP.1433.F solar energy storage battery into AC power suitable for household consumption, and vice-versa for charging the battery. This integration forms a complete solar power system, as demonstrated by this client’s setup.
