Lithium-ion batteries have become indispensable in modern energy storage systems, with LiFePO4 (Lithium Iron Phosphate) batteries earning a stellar reputation for their safety, durability, and high performance. However, making informed decisions about selecting, deploying, and optimizing LiFePO4 batteries requires an in-depth understanding of their specifications, which are detailed in lithium battery data sheets. This comprehensive guide delves into the key features of LiFePO4 batteries and explains how to analyze their data sheets to maximize energy storage system performance.
Key Features of LiFePO4 Batteries in Energy Storage
High Energy Density and Efficiency
LiFePO4 batteries provide a robust energy density ranging from 90 to 160 Wh/kg, which is lower than other lithium-ion chemistries like NMC (200–260 Wh/kg) but offers substantial advantages in terms of safety and longevity. While the slightly reduced energy density may seem like a drawback, the higher thermal and chemical stability of LiFePO4 batteries outweigh this limitation for stationary and renewable energy applications.
Efficiency is another strong point. LiFePO4 batteries boast a round-trip efficiency of 95–98%, meaning they lose minimal energy during the charge and discharge processes. This is particularly beneficial in solar and wind energy systems, where maximizing energy utilization is crucial. For example, in a solar setup, energy stored during peak sunlight hours can be efficiently discharged at night, ensuring optimal performance.
Longer Cycle Life and Stability
One of the most compelling reasons to choose LiFePO4 batteries for energy storage is their remarkable cycle life. On average, these batteries deliver between 2,000 and 5,000 cycles, with some high-quality models offering up to 10,000 cycles under ideal conditions. In comparison, traditional lead-acid batteries typically last only 300–500 cycles, while other lithium chemistries like NMC average around 1,000–2,000 cycles.
This extended lifespan translates directly into cost savings over time, as fewer replacements are needed. For renewable energy systems, where batteries are cycled daily, the durability of LiFePO4 batteries makes them a more sustainable and economical choice.
Safety Advantages of LiFePO4 Chemistry
The chemical structure of LiFePO4 inherently enhances safety. Unlike cobalt-based lithium-ion batteries, which are prone to thermal runaway, LiFePO4 batteries remain stable even under extreme conditions. Thermal runaway occurs when a battery overheats uncontrollably, leading to potential fires or explosions. This risk is significantly mitigated in LiFePO4 batteries due to their stable phosphate chemistry.
For example, LiFePO4 batteries can tolerate temperatures of up to 60°C without significant degradation, making them suitable for use in harsh environments. This stability is a critical factor in residential energy storage systems, where safety is a top priority.
Decoding a LiFePO4 Battery Data Sheet
Interpreting a lithium battery data sheet requires careful attention to several technical specifications. Each parameter provides valuable insight into the battery’s performance, compatibility, and safety.
Capacity (Ah) and Energy (Wh)
Capacity, measured in ampere-hours (Ah), indicates how much charge the battery can store. For example, a 100Ah battery can theoretically deliver 100 amps of current for one hour. Energy, measured in watt-hours (Wh), is calculated by multiplying the capacity (Ah) by the nominal voltage (V).
For energy storage systems, this data helps determine how much energy can be stored and used. For instance, a LiFePO4 battery with a capacity of 100Ah and a nominal voltage of 12.8V provides 1,280Wh, or 1.28kWh, of energy. Knowing these values is essential for sizing systems to meet specific energy demands.
Nominal Voltage and Voltage Range
The nominal voltage for a single LiFePO4 cell is typically 3.2V, and these cells are often configured in series to achieve higher voltages. For instance, a 12.8V battery is composed of four cells in series.
The voltage range specifies the upper and lower limits for safe operation. Overcharging or over-discharging outside this range can damage the battery and reduce its lifespan. Battery management systems (BMS) play a critical role in maintaining the voltage within safe limits. For example, a typical LiFePO4 battery might have a charge cut-off voltage of 14.6V and a discharge cut-off voltage of 10V.
Charge and Discharge Characteristics
The charge and discharge rates, often expressed as C-rates, indicate how quickly the battery can be charged or discharged. A 1C rate means the battery can be fully charged or discharged in one hour.
LiFePO4 batteries usually support higher charge and discharge rates compared to lead-acid batteries. For example, a 1C discharge rate for a 100Ah battery would allow a current of 100A, while a 0.5C rate limits it to 50A. These characteristics are crucial for applications with high power demands, such as off-grid solar systems during peak usage hours.
Operating Temperature Range
LiFePO4 batteries can operate across a wide temperature range, typically from -20°C to 60°C, with some advanced models extending this range further. This makes them ideal for diverse climates, from freezing winters to scorching summers.
However, performance varies with temperature. At low temperatures, the internal resistance of the battery increases, reducing its efficiency. It’s essential to consult the data sheet for performance ratings at specific temperatures to ensure the battery meets application requirements.
Safety Certifications and Standards
Certifications like UL 1642, IEC 62133, and CE ensure the battery complies with international safety and performance standards. These certifications are critical indicators of quality and reliability. For instance, a UL-certified LiFePO4 battery has undergone rigorous testing to confirm its resistance to overheating, overcharging, and other potential hazards.

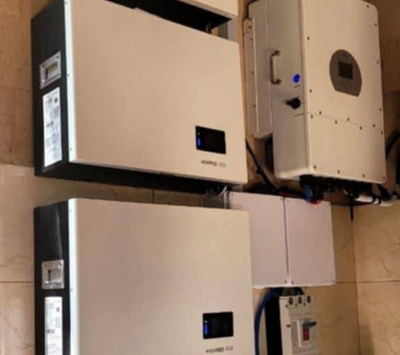

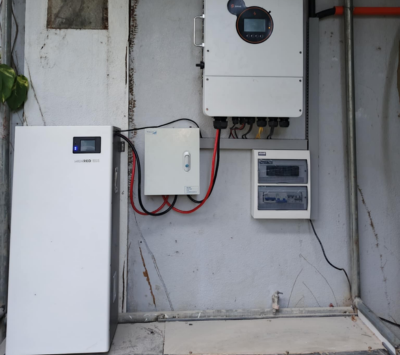

Customer Installation Case: MENRED ESS with 12.28kWh LiFePO4 Battery and DEYE Inverter
One of the most effective ways to showcase the capabilities of LiFePO4 batteries is through real-world installation cases. A recent example involves the deployment of a MENRED ESS LFP.6144.G2 LiFePO4 battery, paired with a SUN-6K-SG03LP1-EU DEYE inverter, delivering seamless energy storage and management. Let’s explore the specifics of this setup and its benefits.
System Overview: Key Components and Specifications
Battery: MENRED ESS LFP.6144.G2
- Capacity: 12.28kWh
- Technology: LiFePO4 (Lithium Iron Phosphate)
- Voltage: Nominal 51.2V (16 cells in series per moudle)
- Cycle Life: Over 6,000 cycles at 95% Depth of Discharge (DoD)
Inverter: SUN-6K-SG03LP1-EU DEYE
- Type: Hybrid inverter
- Power Output: 6kW
- Input: Compatible with photovoltaic (PV) solar panels
- Key Features: Intelligent energy management, off-grid and on-grid support, and advanced safety features
This combination is ideal for residential and small commercial energy storage systems, offering robust performance and integration with renewable energy sources like solar panels.
Why Understanding Lithium Battery Data Sheets Matters
By decoding a lithium battery data sheet, users can ensure they select a battery that aligns with their energy storage requirements, safety standards, and system compatibility. LiFePO4 batteries offer a reliable, long-lasting, and efficient solution, but understanding their specifications is essential for optimal deployment.
