The LFP.1433.F solar panel battery is a Lithium Iron Phosphate (LiFePO4) energy storage unit designed for solar system integration. It features a nominal energy capacity of 14.33kWh, with a usable capacity of 13.61kWh. The battery operates at a nominal voltage of 51.2Vdc, with an operational voltage range of 44.8Vdc to 57.6Vdc.
Key technical specifications include a maximum charge current of 140 Amp and a maximum discharge current of 140 Amp, ensuring efficient power throughput. The cycle life is rated at ≥6000 cycles at 0.5C and 25℃, indicating robust longevity for demanding applications. The unit’s physical dimensions are 900x400x260 mm, and it weighs 115kg.
Scalability is a significant advantage, with the LFP.1433.F solar panel battery supporting parallel connections of up to 16 units, enabling a total system capacity of 229.28kWh. This makes it suitable for a wide range of commercial and industrial solar energy storage requirements.

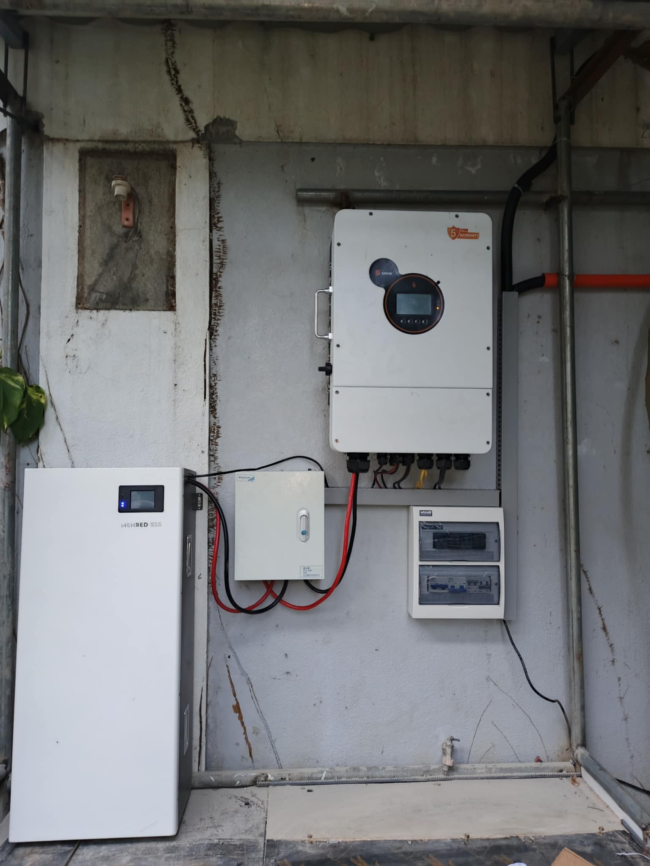

Application Example: Integrated Solar System with SRNE Inverter
In a typical client application, the LFP.1433.F solar panel battery is integrated with a SRNE inverter to form a complete solar energy system. This setup utilizes the SRNE inverter to manage the power flow between the solar panels, the battery storage, and the load. The inverter facilitates the conversion of DC power from the solar array and battery into AC power for consumption or grid export. The LFP.1433.F battery stores excess solar energy generated during daylight hours, which can then be discharged to power loads during periods of low solar generation or at night. This integrated approach enhances energy independence and optimizes the utilization of solar power. The system’s design also allows for monitoring and control, often through interfaces provided by the SRNE inverter or the battery management system itself, potentially including WiFi connectivity for remote data access.
The LFP.1433.F solar panel battery provides a reliable and high-capacity energy storage component for sophisticated solar energy solutions.
